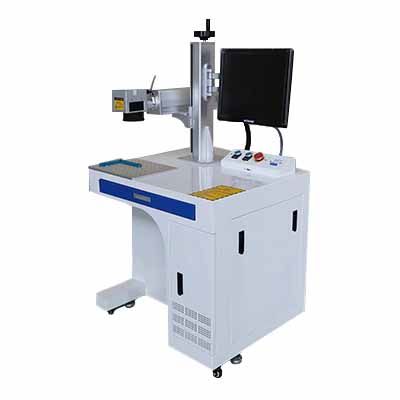

Hindcam Pvt Lmt is well-known for its contribution to the latest and high-tech 50W fiber laser deep engraving machine. And most importantly, it is widely demanded for multi-operations in many industries. In addition, by using this fastest-growing technology, high-precision, and permanent metallic engravings are done. Further, you can engrave serial codes, appealing engraved designs, text, bar codes, QRcode, and much more.
Machine’s Overview
- Laser Power-50W
- Laser Wavelength- 1064nm
- Pulse Width- 20ns
- Repetition Frequency Range 1-600kHz M2 <1.8 Max.
- Output Power Stability- <5%
- Marking Range-110*110mm/200*200mm/300*300mm
- Minimum Line Width- 0.01mm
- Minimum Character- 0.1mm
- Marking Speed- ≤7000mm/s Marking
- Depth- Depend on materials
- Repeatability Accuracy- ±0.001mm
- Marking Format Graphics- text, bar codes, QRcode, automatically date, batch number, serial number, etc.
- Graphic format supported– Ai, plt, ;dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif
- Voltage- 220V±10%/50Hz
- Working Environment- Clean and dust free
- Laser lifetime >100000 hours
- Starting price-Rs.TBD+GST
- Call or WhatsApp: 9310620946
What are the engraving materials?
A 50W Fiber laser deep engraving machine can accurately and efficiently mark and engrave appealing designs and other info. In addition, the engraving quality will also be of finer quality. It includes serial numbers, datestamps, logos, etc. Moreover, this includes the metallic material and non-metallic materials markings very precisely. So, here are the products category lists:
Metals
Aluminum, brass, copper, mild steel, stainless steel, silver, gold, platinum, Nickel, etc
Non-metals
Home appliances, outdoor&indoor woody items of furniture, wire and cable, plastic jewelry, adornments, necklace, bracelet, aviation tools, accessories, etc.
How deep engraving done using the 50W engraving lasers?
A deep laser engraving is done over the different material categories to incise high-quality 3D forms and design patterns. In addition, it helps in deep logo engraving, government stamping, dies and mold engravings, aviation tools and accessories, pipes, and many others. So, to do so, many factors are responsible for the proper set-ups and engraving needs:
- Laser Power: A 50W and above power of the laser beam plays a crucial role in deep laser engraving. Higher laser power allows for faster material removal and deeper engravings.
- Laser Wavelength: It depends on the type of material and the wavelength of different materials. As we know the metallic and non-metallic material engraving wavelengths and machines are different.
- Material Type: The type of material being engraved greatly impacts the deep laser engraving process. Although, different materials have different melting and vaporization points, which affects how the laser interacts with the surface. Some materials, such as metals, may require more power or specialized laser systems.
- Material Thickness: The thickness of the material being engraved affects the depth achievable in the engraving. In addition, thicker material may require multiple passes or higher laser power to achieve the desired depth. It’s essential to consider the material thickness to optimize the laser settings accordingly.
- Focal Length and Spot Size: The focal length and spot size of the laser beam determine the level of precision and depth for metal engravings. Further, a shorter focal length is directly proportional to engraving quality and vice-versa.
- Engraving Speed: The speed at which the laser beam moves across the material surface affects the depth and quality of the engraving. Moreover, slower speeds allow for deeper engravings as the laser has more time to interact with the material. However, engraving speed should be optimized to maintain productivity without compromising quality.
Finally, by setting all the above parameters you can do the deep and accurate engravings without any deformity.
How much is the Laser Engraving depth?

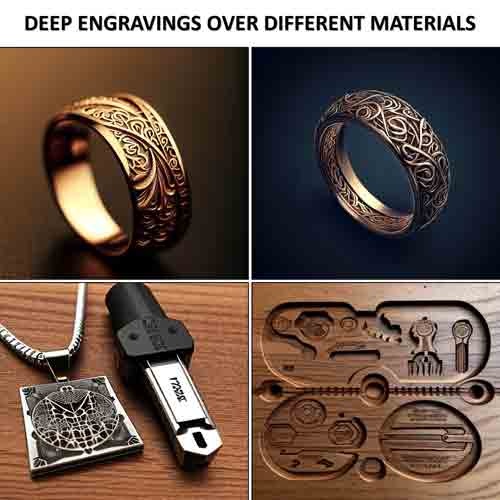

When it comes to the engraving depth of the metallic material, it depends on the category of material. However, you can reach up to a few millimeters to get high-quality engrave patterns. Therefore, you can expect the material thickness level up to 500 microns only for better efficacy. Also, here are some of the material’s deep engravings shown in the picture below.
Also read this
Frequently Asked Questions
Q1.What are the supporting graphic formats using 50W fiber laser deep engraving machine?
Answer: Mainly, a 50W fiber laser deep engraving machine does precise marking format Graphics. It includes Ai, plt, ;dxf, DST, svg, NC, bmp, jpg, jpeg, gif, tga, png, tiff, tif, etc.
Q2. What is the price of a 50W fiber laser deep engraving machine?
Answer: This machine has great power output for marking and engraving needs over metallic surfaces. So,the current price is Rs. TBD+GST. You may also connect us by Call or WhatsApp: 9310620946 for better clarity over the price and specifications.
Q3. What is deep laser engraving?
A deep laser engraving is a three-axis engraves over the material surfaces up to the acceptable thickness level. In addition, it looks very appealing, and permanent engraves are not easily removable from any external factors. So, we can go for the industrial production of laser engravings.
